Roller Shades: Light-Filtering Roller Shades (5%)

Solar Light Filtering Roller Shades with fabrics providing 5% openness feature a continuous clutch mechanism with a metal-beaded chain to ensure smooth operation and locking the shade positively in any position. Shade cloth is Our innovative shade coupler allows a wide bank of shades to be controlled by a single clutch or crank operator which raises and lowers the shades in tandem and keeps coupled shade panels even at all times.

Solar Light Filtering Roller Shades are made in America and feature a heavy-duty extruded aluminum tube with an extruded keyway for fabric attachment. A PVC spline is welded to fabric and snaps into the keyway ensuring correct alignment of the fabric and easy removal and replacement of the fabric on-site without uninstalling the brackets.

An extensive collection of weaves, colors and openness help to manage the sun's heat and glare and reduce energy costs while maintaining the outward view. Choose from more than 200 fabric and color combinations that will not fade or tear and are stain, mold and mildew resistant.

Features:

Heat-sealed enclosed hem pocket with custom extruded hembar.

Heavy-duty clutch system with stainless steel chain capable of lifting 100 sq. in. of fabric.

Extruded aluminum fascia and pocket closure systems, in 3, 4, or 5” standard sizes and 3 and 4” round systems.

Optional sealed, lubricated gearbox with detachable crank handle capable of lifting 200 sq. in. of fabric.

Solar openness ranges from 1-14%; openness determines clarity of view/UV blockage.

3-year warranty against defects in parts and workmanship.

Shipping costs for customers in the 48 contiguous states is FOB Destination.

Shipping costs for customers in Alaska, Hawaii and Puerto Rico is FOB Destination from inland port.

FABRICS: All fabrics are Lead-free, FR and Greenguard Certified and Exceeds ASTM standards for Bacteria and Fungal Resistance.

Production time: Approximately 5-7 business days plus 1-5 days for shipping.


Style 2390 (5%): Woven in full basketweaves made of vinyl-coated fiberglass yarns.

Style 2390 (5%): Woven in full basketweaves made of vinyl-coated fiberglass yarns.

P12 Oyster

P13 Oyster-Beige

P14 Oyster-Pearl-Gray

Q20 Beige

Q21 Beige-Pearl-Gray

V20 Pearl Gray

V24 Charcoal-Chestnut

V21 Charcoal


Style 4000 (5%): Made from vinyl-coated polyester yarns, designed ideally for the commercial market.

Style 4000 (5%): Made from vinyl-coated polyester yarns, designed ideally for the commercial market.

P06 Chalk

P07 Alabaster

P10 Granite

Q12 Pebblestone

Q15 Greystone

V07 Pewter

V15 Ash

Q16 Tobacco

V10 Ebony

M-Screen (5%)

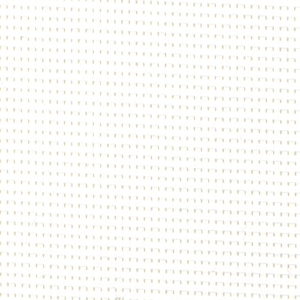

0202 White-White

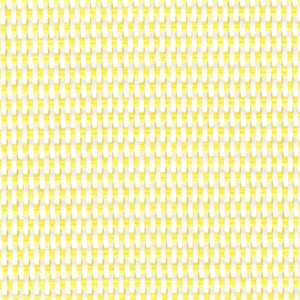

0205 White-Canari

0210 White-Sable

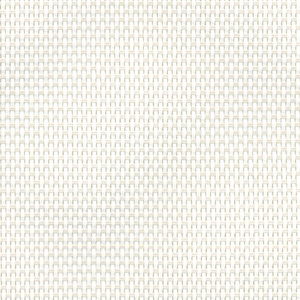

0220 White-Linen

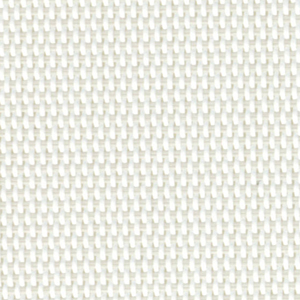

0222 White-Stone

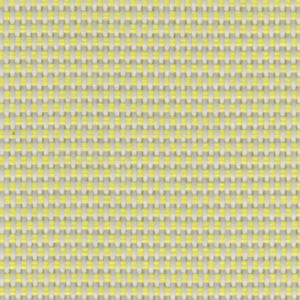

0705 Perle-Canari

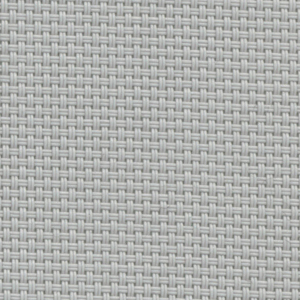

0707 Perle-Perle

0710 Perle-Sable

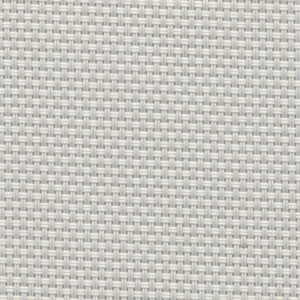

0720 Perle-Linen

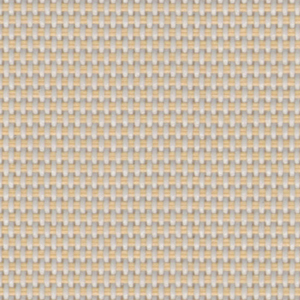

0771 Perle-Apricot

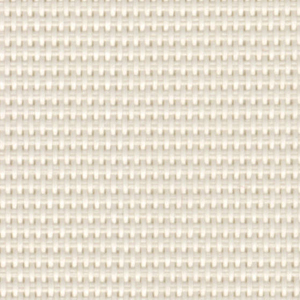

2020 Linen-Linen

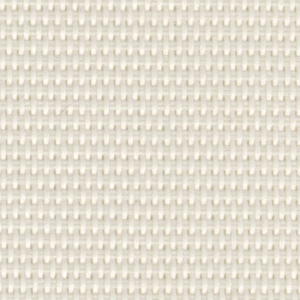

2022 Linen-Stone

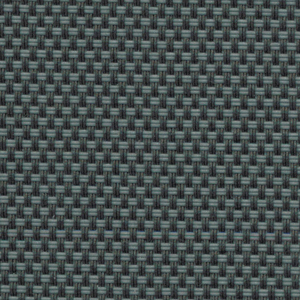

3001 Charcoal-Gris

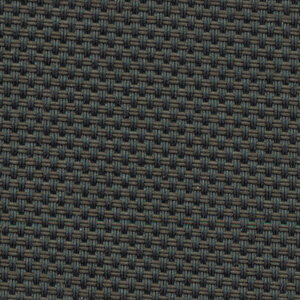

3006 Charcoal-Bronze

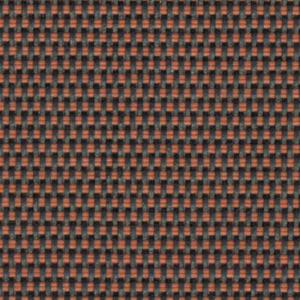

3009 Charcoal-Mandarine

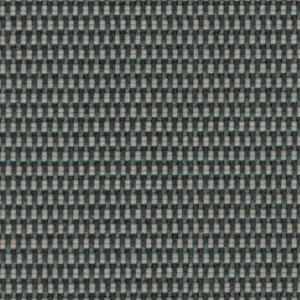

3010 Charcoal-Sable

3030 Charcoal-Charcoal

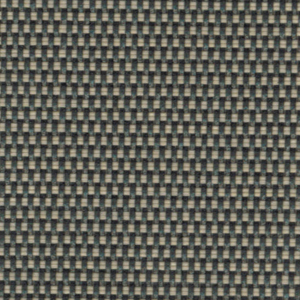

3071 Charcoal-Apricot

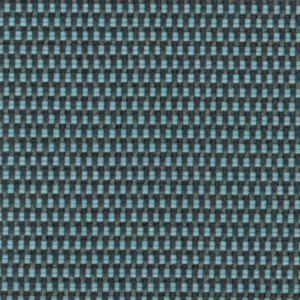

3091 Charcoal-Sky

E-Screen (5%)

0202 White-White

0207 White-Perle

0220 White-Linen

0707 Perle-Perle

0720 Perle-Linen

2020 Linen-Linen

3001 Charcoal-Gris

3006 Charcoal-Bronze

3030 Charcoal-Charcoal

Color Accuracy Policy:

Although we do our best to make sure that the colors on our web site are accurate, actual colors will vary. In addition, subtle color differences and textures may not be fully appreciated on some systems due to differences in monitors and/or display cards because computer monitors are not all calibrated equally and color reproduction on the Internet is not precise. Since it is not possible to guarantee our online colors will look the same on all computers, we do not guarantee that what you see accurately portrays the color of the actual window treatment. Due to the fact that our products are all custom made, and cannot be returned, you need to be sure that you can live with any color variations that are possible from our scanning of the actual samples. Also, most of our products use Color-coordinated components. Color-coordinated means similar colors but not necessarily the same exact color. An exact match in color is not always possible for the components of the blind/shade. The color that best coordinates with the slat or fabric color of the product will be chosen for use on the components. All components will not necessarily be of the same exact coordinated color. Some examples of color-coordinated component would be ladder strings, lift cords, tilt mechanisms, bottom rails, tassels, etc. If an exact color match is needed, please order color swatches before placing your final order.

Available Options For This Product

Mount: Available as Inside or Outside Mount
Lift Types: Continuous Loop Clutch Comes Std, Cassette System Optional(prices below). Cassette System includes Continuous Loop Clutch w/Color-Coordinated Bead Chain. Motorized Lift Adds $927, Motorized Lift w/Remote Adds $1143
Hem Styles: Scalloped Hem w/Gimp (see price chart below), Tabbed Hem w/Rod(see price chart below), Scalloped w/Dec Trim(see price chart below), Scalloped w/Dec Trim has a free feature to add (see Decorative Trim Option chart below)
Brackets: Long Extension Brackets Available at No Charge (Only Available for Continuous Loop Clutch System)

Cassette Lift System:

Cassette Lift System

Scalloped Hem w/Gimp:

Scalloped Hem w/Gimp

Scalloped w/Dec Trim:

Scalloped w/Dec Trim

Decorative Trim: Trim choices below are included with the Scalloped w/Dec Trim option above

Tassel Fringe
White #24

Tassel Fringe
Ivory #28

Surrey Fringe
White #27

Surrey Fringe
Ivory #28

Fancy Gimp
Brown Multi #19

Fancy Gimp
Red Multi #23

Specifications & Installation Requirements

Product Specifications:
Minimum Width	12"
Minimum Height	12"
Maximum Width	127"
Maximum Height	120"
Approx. Control and Fabric Deductions	(see chart below)
Max Fabric Width:
Chevalier Maximum Width	74"
Firenza Maximum Width (Not available Railroaded)	74"
Motorized Lift Specifications
Motorized Maximum Width	84"
Motorized Maximum Height	96"
Motor Manufacturer	Somfy

Cassette System Specifications
Minimum Width	12"
Minimum Height	6"
Maximum Width	84"
Maximum Height	120"
Installation Requirements:
Minimum Inside Mount Depth	1 1/4"
Minimum Inside Mount Depth (Cassette style)	1 3/4"
Minimum Inside Mount Depth (fully recessed)	3"
Minimum Inside Mount Depth (Cassette style)(fully recessed)	4"
Minimum Outside Mounting Surface	2"
Outside Mount the width is the fabric/barrel width not tip to tip

Roller Shades Stack Height

The stack height varies based on the size of the roller shade. The wider/longer the shade the bigger the roll will be when the shade is in the up position. Larger sized shades also require a thicker the tube to support the shade. We can only estimate the stack sizes for customer inquiries. The normal estimation is anywhere from 2-5 inches.

Roller Shade Width Deductions

Production Deductions taken by Factory
	1" Metal Roller - 14" to 71 7/8" width		1 3/8" Metal Roller - 72" and greater width
	IB	OB	IB	OB
Tip to Tip	1/4"	1/8"	1/4"	1/8"
Barrel	1 1/8"	1"	1 1/4"	1 1/8"
Fabric	1 1/8"	1"	1 1/4"	1 1/8"

Product Constraints:

How To Measure

Click here to view our detailed Measuring Instructions. Note: This link opens in a new window.

How To Install

View or print our Roller Shades installation instructions.

Warranty Information

Roller Shades 3-Year Warranty

Our Guarantee: Once you are satisfied with your new Prestige Roller Shade and the way it is installed in your home, Prestige Window Fashions guarantees your shade will be free from defects due to faulty workmanship or materials for as long as the original purchaser owns the product, provided that the product was installed properly and in accordance with the installation instructions. The warranty is extended to the original purchaser only, in the original windows for which it was intended in residential properties only.

Our Obligation To You: For claims covered by the guarantee, Prestige Window Fashions will replace or repair any product, with like or similar parts, which are found to be defective as a result of faulty workmanship or materials and excludes shipping costs, trip charges and labor costs for measuring and installation.

Guarantee Limits: This guarantee does not apply to any Prestige Roller Shade or parts thereof which fail due to accident, alteration, improper use, abuse, neglect, normal wear, nor color fading dut to sunlight, direct exposure to salt air, failure to follow instructions, installing or operating the product. Any defect, malfunction or other failure of the product to conform to this limited guarantee will be remedied by Prestige Window Fashions solely in the manner provided in this guarantee.

THIS LIMITED GUARANTEE DOES NOT COVER, AND IS INTENDED TO EXCLUDE, ANY AND ALL LIABILITY ON THE PART OF THE COMPANY, WHETHER UNDER THIS LIMITED GUARANTEE OR UNDER ANY GUARANTEE IMPLIED BY LAW, FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES FOR BREACH THEREOF EXCEPT AS EXPRESSLY PROVIDED ABOVE IN THIS LIMITED GUARANTEE, THE COMPANY HEREBY NEGATES AND DISCLAIMS ALL EXPRESS GUARANTEES.

Note: Some states do not allow the exclusion of limitation of incidental or consequential damages, so the foregoing limitation or exclusion regarding such damages may not apply to you. Also, this Limited Guarantee gives specific legal rights, and you may also have other rights which vary from state to state. The limited warranty covers remote motorization for a period of 5 years.

Shipping Fees

UPS or FedEx Ground Shipping:
This applies to all orders under 96 inches in width or length shipping to an address in the contiguous 48 states of the U.S. If it travels by UPS or FedEx then shipping is FREE! Please call us for shipping quotes outside the covered area, excluding all Plantation Shutters, which incurs a 3.00 per square foot flat shipping charge fee per manufacturer.

Oversize Products Shipping Fee:
If your package is 96 inches or over in width or length it will be shipped by common carrier (semi truck) from the nearest manufacturing facility to you. There will be a .00 oversize shipping charge for any order with products that are 96 inches or more in width or length. This charge is per manufacturer. Meaning if you order two over-sized products and they are from two different manufacturers (two different brands) then there will be TWO charges for a total of 0 shipping. But, if you have more than one product over 96 inches and it is from same manufacturer you will only pay one oversize fee. The fee is per order, not per blind, excluding all Plantation Shutters, which incurs a 3.00 per square feet flat shipping fee per order.
